High quality equipment and parts for continuous casting

Square, Rectangular, Round and Beam Blank copper mould tubes. With dedicated to research of new technologies, we continuously develop various sizes, materials and special shapes, large and super large size mould tubes.

Various sizes and types of copper mould tubes and plates have been supplied to world’s top steel manufacturer Arcelormittal, TATA Steel, EZZ steel etc. We do OEM for Concast and Danieli for a long time

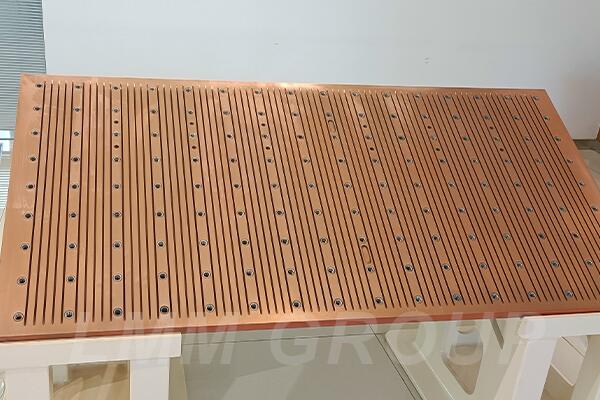

Mould Plates

High quality copper mould  LMM GROUP offer, having maximum durability, highest heat resistivity & ensuring efficient billet casting.

LMM Mould’s key features:
· 100% high quality Chile originated Copper;
· CuDHP, CuAg0.1, CuCrZr, CuNiBe, CuCoNiBe alloy etc
· Cr/Ni/NiCo/Ceramic coating etc with various shapes;
· state of the art milling, drilling, measuring & testing facilites etc with more than 20 years manufacturing experience.
·in accordance with EN, DIN, ANSI, AS standards, meet strictest requirement;
· quick delivery time, 25 days or shorter;
· more than 80000 pcs capacity annually;

ПЛИТА ФОРМА
copper-mould-plate
COPPER PLATE SIZESPECIFICATIONSMATERIALCOATING
LENGTHWIDTHTHICKNESS
Slab350-3800700-100035-300Cr-Zr-Cu,CuAgNi-Co,Cr,Ni-Fe
Beam Blank350-900300-100035-300Cr-Zr-Cu,CuAgNi-Co,Cr,Ni-Fe
Rectangle700-900200-300030-70Cr-Zr-Cu,CuAgNi-Co,Cr,Ni-Fe
Thin Slab1200-20001100-1200 Cr-Zr-Cu,CuAgNi-Co,Cr
Ultra-thin Slab1530700-900 Cr-Zr-Cu,CuAgNi-Co,Cr

The copper mould tube is the core component of continuous casting. The copper plate of the copper mould tube is an important heat-conducting component in continuous casting from liquid steel to solidification into a solid shell. Its quality directly affects the surface quality of the slab, the casting speed and other indicators. The molten steel flows through the copper plate of the copper mould tube, copper mould tubes into a billet under the action of external cooling water, and is pulled out of the copper mould tube by the dummy rod. Frequent billet drawing causes serious wear and tear on the copper plate of the copper mould tube, and frequent replacement not only reduces production efficiency, but also consumes a large amount of copper mould tubes. In order to improve the service life of the copper mould tube copper plate, relevant domestic and foreign units and experts have conducted long-term and in-depth research on copper plate materials and coatings, and have achieved great results. At present, thermal analysis technology has begun to be applied at home and abroad to study the optimization of copper mould tube design and coating selection. The application of thermal analysis technology on the copper mould tube copper plate has greatly improved the life of the copper mould tube plate.

continuous casting equipment

LMM GROUP dedicated to research of new technologies, continuously develop various sizes,materials and special shapes, large and super large size mould tubes. Also developed various types of high efficiency copper mould tube for continuous casting machine.

Our sales network covers the entire world market and is supported experienced local agencies.

Special product design, please send specific data and drawings to our mailbox or form.
